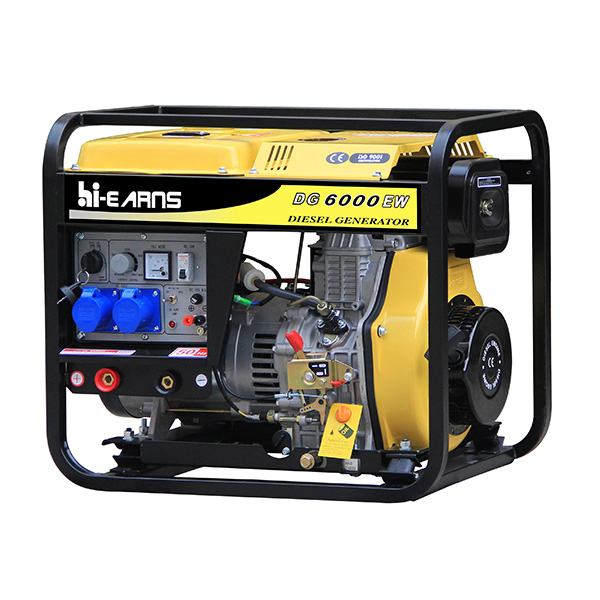

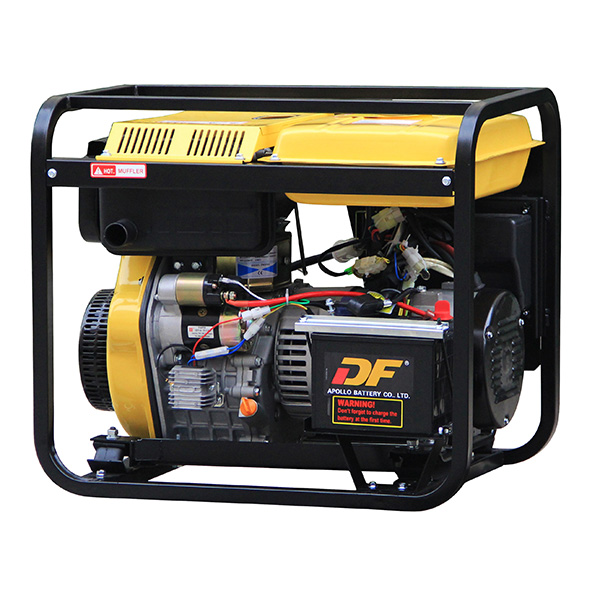

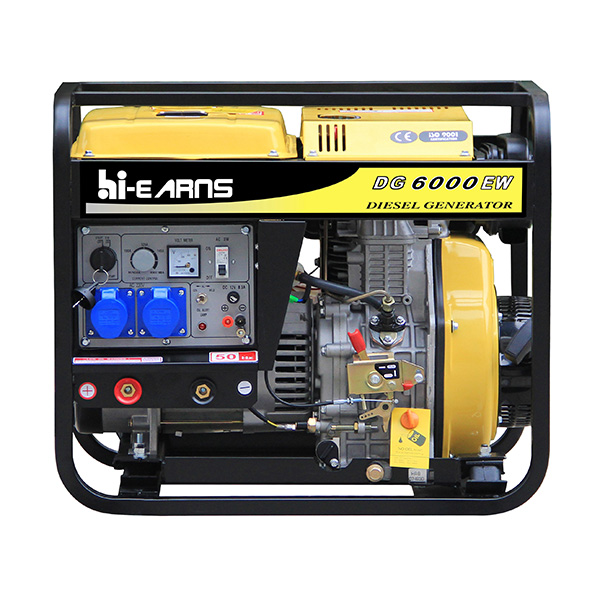

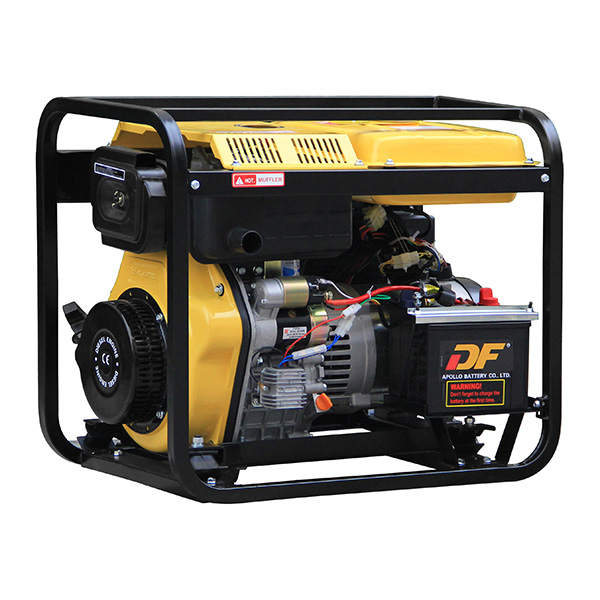

1.8KW welding generator
1.We are manufactory covering diesel and gasoline engine, diesel generator from 2-500KW, water pump, trash pump, construction machinery like vibrator rammer, compactor, concrete cutter, power trowel, farm machinery and so on 2.Use famous brand spare parts 3.ISO, CE, GS approved supplier 4.One year warranty, complete spare parts for after-sales services 5.Low price with good quality, reliable performance 6.Easy to start and operate, convenient to move 7.Low fuel consumption, easy maintenance 8.Our logo or OEM
Product Detail
Frequency (HZ)5060
Rated Output (KW)1.82.2
Rated Speed (rpm)30003600
Rated AC Voltage (V)220, 230, 240
Power Factor1
Weling No-load Voltage (V)55-65
Working Voltage (V)26-30
Rated Current (A)180
Welding Efficiency60%
PhaseSingle phase
Noise Level (at 7m)80-85
Fuel Tank Capacity (L)12.5
Continues Running Time (hr)6
Engine ModelHR186FA
Engine Typesingle-cylinder, vertical,4-stroke air-cooled diesel engine
Bore×Stroke (mm)86×72
Displacement Capacity (cc)418cc
Fuel Consumption Rate (g/kw.h)≤280
Fuel0# or -10# light diesel oil
Lubrication Oil Volume (L)1.65L
Combustion SystemDirect Injection
AC Output Socket2
AC Circuit BreakerYes
Oil Warning LightYes
Oil AlertYes
22AH BatteryYes
DC Circuit BreakerYes
Hour MeterOptional
Current MeterOptional
Remote ControlOptional
30AH BatteryOptional
36AH BatteryOptional
Wheel and HandleOptional
L×W×H (mm)760×520×620
Net Weight (kgs)102
20FT Load Quantity102
