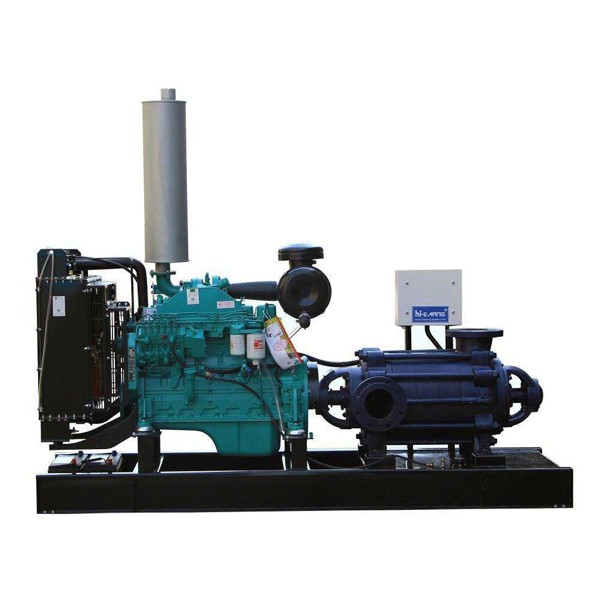

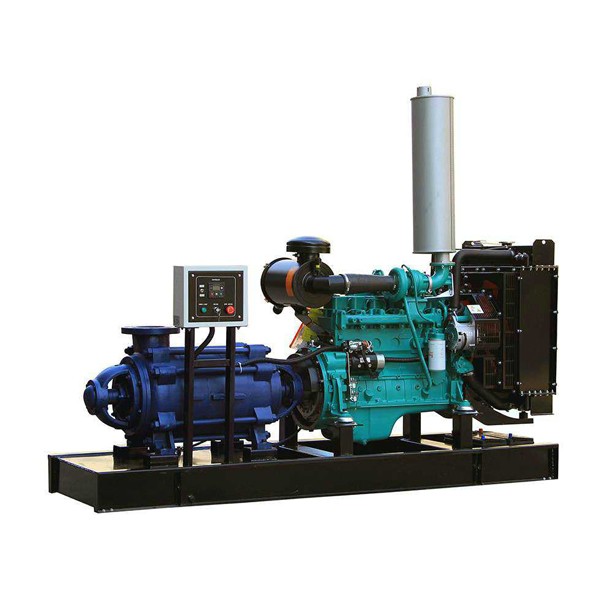

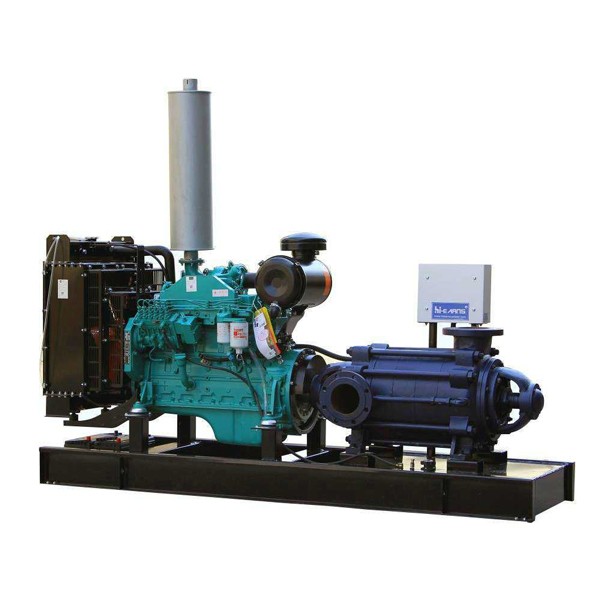

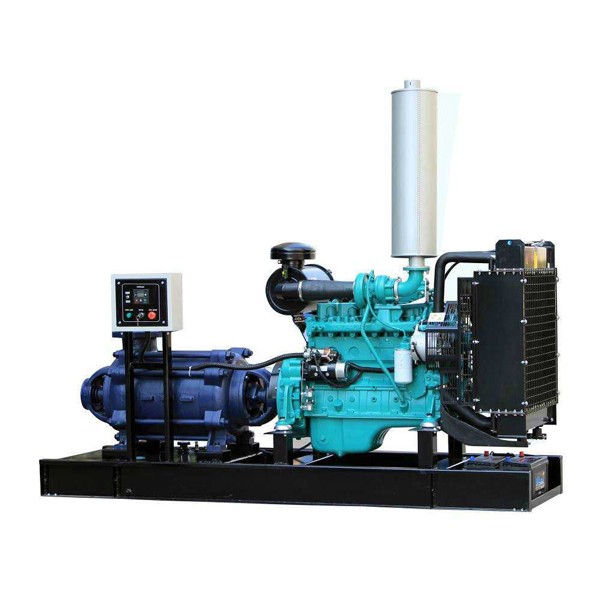

Diesel water pump
| Model | D150-30*4 | |
| WATER PUMP | Type | Multistage centrifugal pump |
| Suction,discharge port diameter mm(in) | 150(6") | |
| Cont.head(m) | 120 | |
| Cont.capacity(m3/hr) | 155 | |
| Stage number | 4 | |
| Suction lift | 5.5 | |
| Pump speed | 1500 | |
| Fuel tank capacity(L) | 100 | |
| Battery capacity | 24V-100A | |
| Cashing material | Ductile cast iron | |
| Shaft material | Ductile cast iron | |
| Impeller | Ductile cast iron | |
| Seal method | Stuff sealing | |
| Connection method | High elastic dowel pin shaft couping | |
| ENGINE | Engine model | Cummins 6BTA5.9-G2 |
| Rated output | 106KW | |
| Speed(rpm) | 1500 | |
| BorexStroke | 102x120 | |
| Type | DCEC Cummins 6BTA5.9-G2, 4-cycle | |
| Cylinder | 6 | |
| Air intake system | Turbo charged inter cooled | |
| Engine speed | 1500 | |
| ENGINE | Start motor | DC24V |
| AC charger | DC24V | |
| Fuel consumption | 200g/kw-hr | |
| Oil capacity | 16L | |
| Cooling way | Water cooled | |
| Governor type | Electronic speed control system | |
| Max water temperature | 104℃ | |
| Dry weight(kg) | 1650 | |
