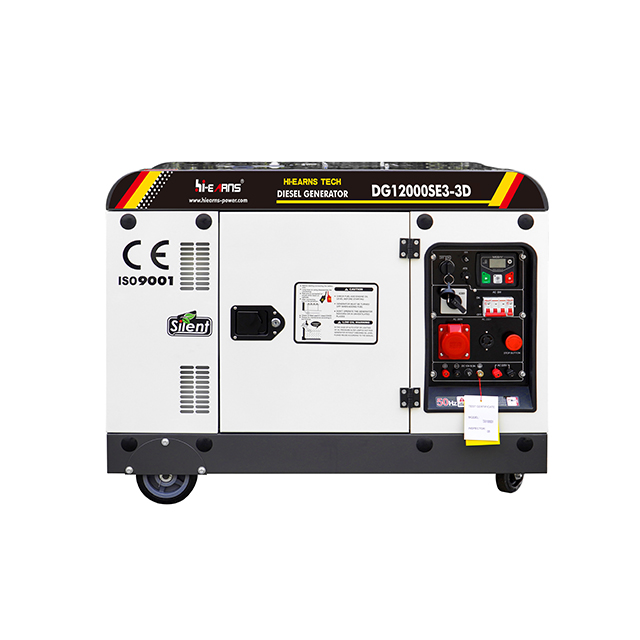

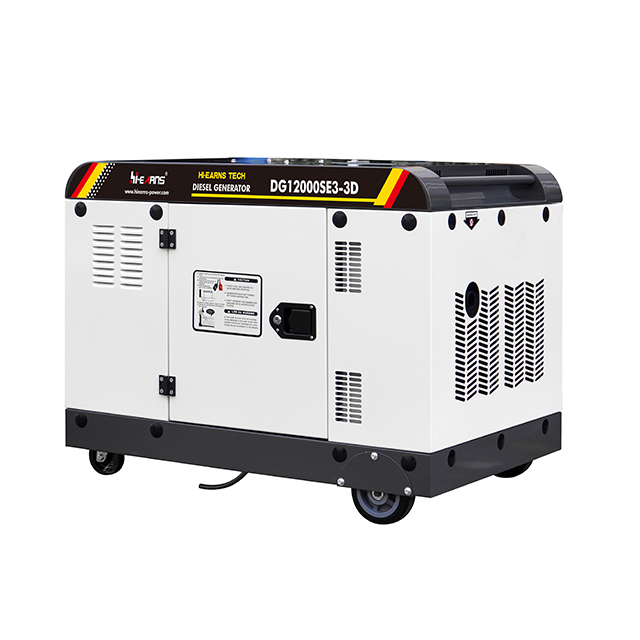

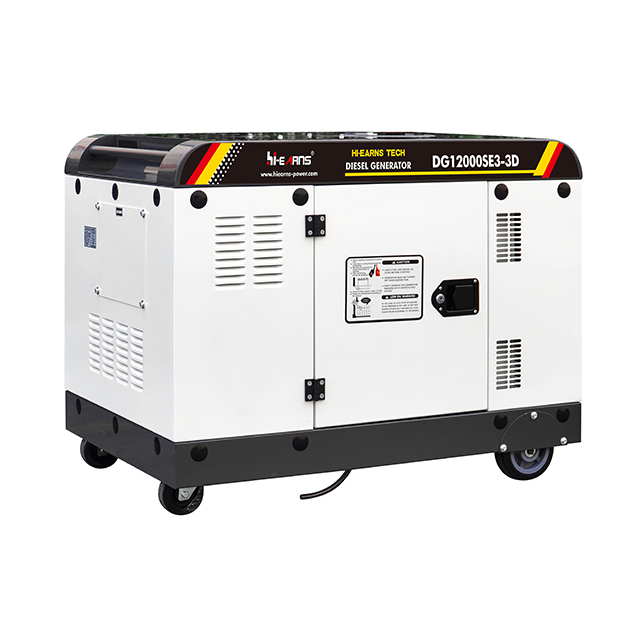

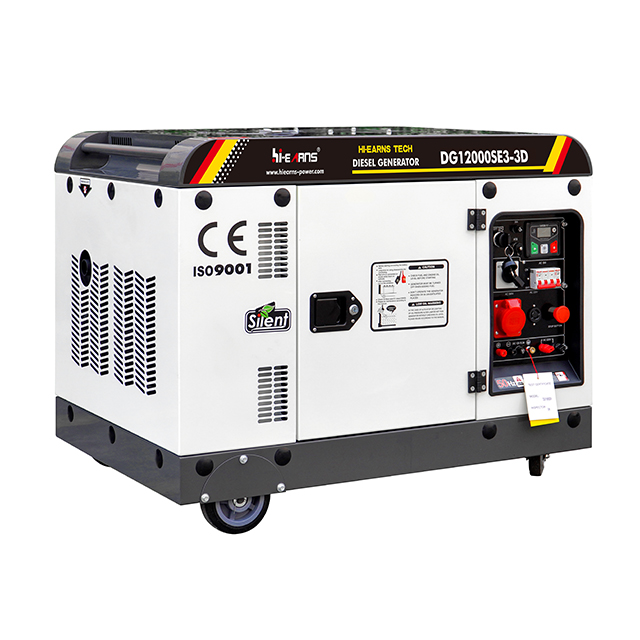

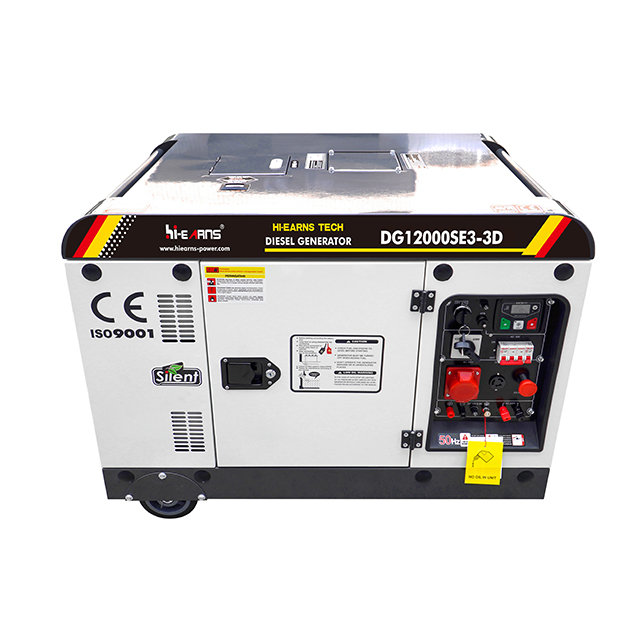

8KW silent diesel generator with 198FA engine ATS optional
8KW diesel generator with 198FA patent engine
unique in China, only we can produce in China.
The biggest power of the single-cylinder engine.
8KW diesel generator with 198FA patent engine
unique in China, only we can produce in China.
The biggest power of the single-cylinder engine.
8KW diesel generator with 198FA patent engine
Model | DG11000SE 8kw diesel generator | ||
GENERATOR | Frequency (HZ) | 50 | 60 |
Max.output (KW) | 8 | 8 | |
Rated output (KW) | 7.5 | 7.5 | |
Rated AC voltage (V) | 120, 220, 230, 240, 220/380, 230/400, 240/415 | ||
Power factor | 1 | ||
DC output (V) | 12V/8.3A | ||
Phase | Single phase or Three phase | ||
Alternator type | Self-excited, 2-pole alternator | ||
Starting system | Electric | ||
Noise level (Dba/7m) | 72-75 | ||
Fuel tank capacity (L) | 30 | ||
Continuous running time (hr) | 12 | 12 | |
ENGINE | Engine model | HR198FA | |
Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore×Stroke (mm) | 98×84 | ||
Fuel consumption rate (g/kw.h) | ≤280 | ||
Fuel | 0# or -10# light diesel oil | ||
Lubrication oil volume (L) | 1.65 | ||
Combustion system | Direct Injection | ||
STANDARD FEATURES | Voltmeter | YES | |
AC output socket | 2 | ||
AC circuit breaker | YES | ||
Oil warning light | YES | ||
Oil alert | YES | ||
OPTIONAL FEATURES | DC circuit breaker | OPTIONAL | |
Calculagraph | OPTIONAL | ||
Big wheel | OPTIONAL | ||
Three phase voltage | OPTIONAL | ||
Current meter | OPTIONAL | ||
ATS | OPTIONAL | ||
Remote control | OPTIONAL | ||
DIMENSIONS | Packing dimention (LxWxH) (cm) | 113×78×86 | |
Gross weight (kgs) | 220 | ||
20FT loading pcs | 30 | ||
40HQ loading pcs | 96 |
