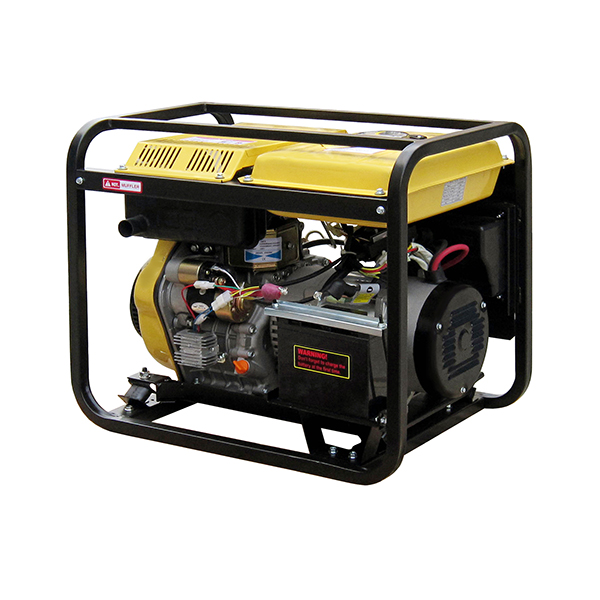

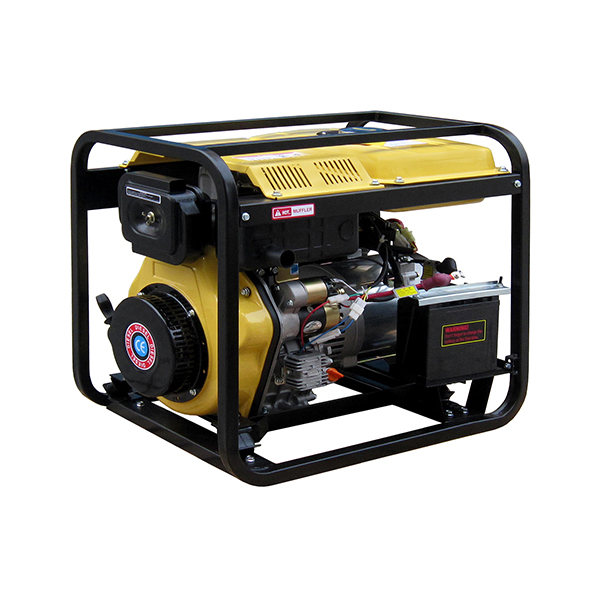

7500EW 1.8KW Welding machine
product details

    Model DG3000
    Frequency(HZ) 50 60
    Max.output(KW) 3 3.3
    Ratedoutput(KW) 2.8 3
    Rated.ACvoltage(V) 110,220,230,240
    Powerfactor(cos¢) 1
    DCoutput(V) 12V/8.3A
    Phase Singlephase
    Alternatortype Self-excited,2-pole,singlephasealternator
    Startingsystem RecoilorElectric
    Noiselevelat7m(Dba) 80-85
    Fueltankcapacity(L) 12.5
    Continuouswork(hr) 9.7 9
    Model HR178F
    Enginetype single-cylinder,vertical,4-strokeair-cooleddieselengine
    Bore×stroke(mm) 78×62
    Fuel 0#or-10#lightdieselfuel
    Lubricationoilvolume(L) 1.1
    Combustionsystem DirectInjection
    Voltmeter yes
    ACOutputSocket 2
    Accircuitbreaker yes
    Oilwarninglight yes
    Oilalert yes
    DCcircuitbreaker yes
    Calculagraph Optional
    Threephasevoltage Optional
    Currentmeter Optional
    ATS Optional
    Remotecontrol Optional
    Welding no
    Dimension(L×W×H)(mm) 700×480×570
    Netweight(kg) 68
    20FT 130
